About this texture
Fine-Spangle Galvanized Sheet: finish and surface detail
Small irregular silver-gray crystalline patches cover a clean continuous sheet. Fine branching marks sit within some patches, while the overall face remains nearly smooth. This study emphasizes a fresh spangled finish rather than chalky oxidation, heavy scratches or rust.
Where to use this material
Galvanized ventilation duct props, sheet-metal enclosures and architectural trim in interior scenes. Add folded edges, screw holes and panel joints in the mesh; the texture is a continuous coating study and does not include those construction details.
Keep the finish believable
Use metallic 1 as the supplied clean-metal starting point, roughness near 0.44 and normal strength 0.3. Keep the crystalline color boundaries almost flat instead of embossing every patch. The maps do not encode measured optical constants, crystal-specific anisotropy or a protective-coating specification.
Texture scale and UV repeats
The example uses 0.3 m across the whole texture tile. This places the small crystalline patches at an illustrative millimeter scale; compare them with a modeled screw head or enclosure edge at your camera distance. The pattern is generated, so neither patch size nor coating thickness was physically measured.
The example uses 0.3 m per full texture tile. This is an illustrative UV scale, not a measured physical capture. Inspect the repeat at your actual camera distance before covering a large surface.

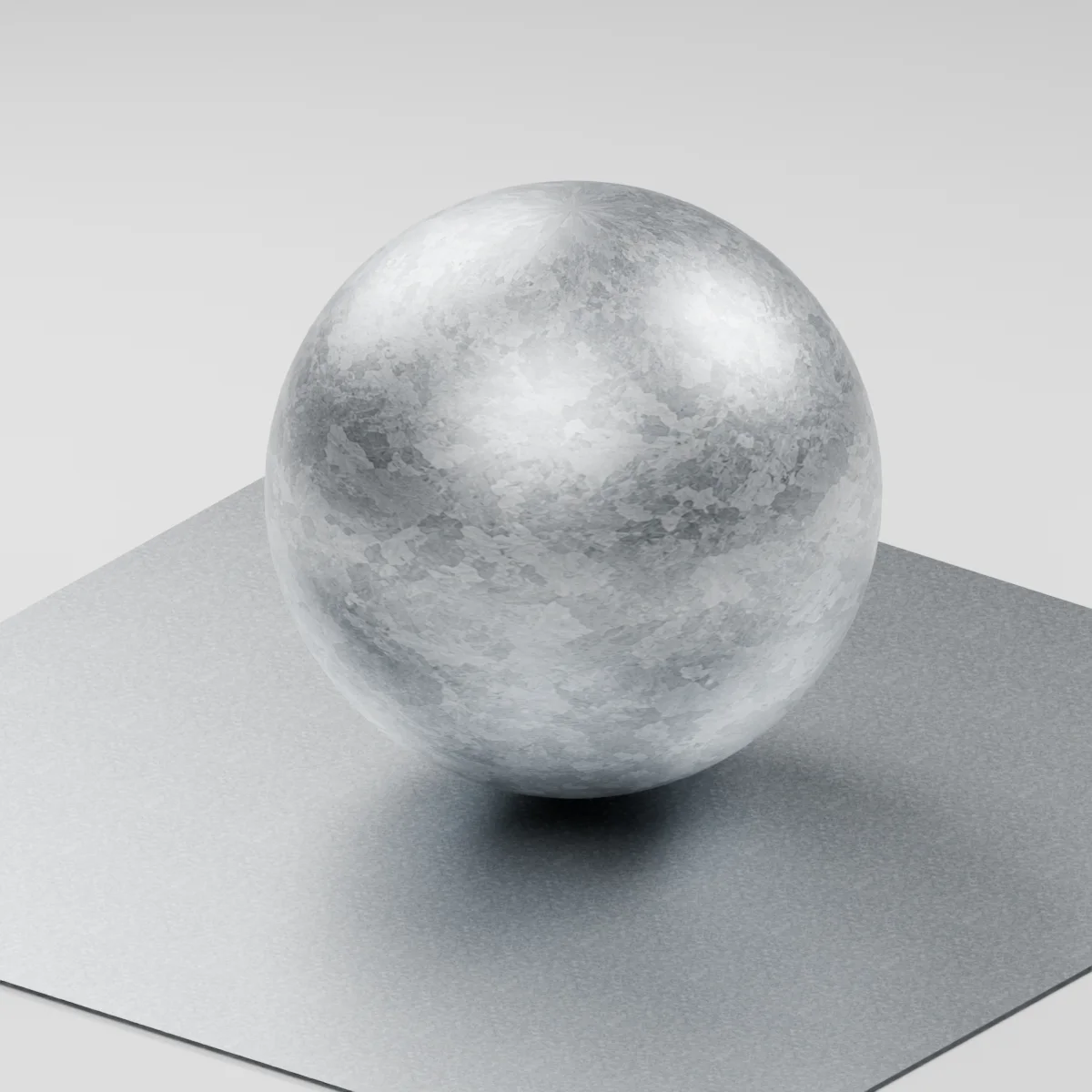

Set up Fine-Spangle Galvanized Sheet in Blender
Connect albedo.png to Base Color using sRGB. Use roughness.png and normal-gl.png as Non-Color data. Route the normal through a Normal Map node, starting at strength 0.3. Set metallic to 1. The downloadable scene packs all three images.
The base color is AI-generated, and normal and roughness are estimates. The material changes surface shading; it does not add silhouette geometry. The pack has no displacement, AO or metallic image. For an engine expecting DirectX normals, use an image editor to invert the normal map’s green channel. Follow the Blender texture setup guide for the node connections.
Compare related finishes
Box Profile Metal Sheet · Rusty Metal 03
Fine-Spangle Galvanized Sheet: common questions
Why should the crystalline spangle pattern have very little normal relief?
This material is intended to read as a nearly smooth metal coating. Raising every light and dark patch can make it look hammered or embossed. Start with the supplied normal strength of 0.3 and judge the highlight at grazing angles; normal and roughness are image-derived estimates rather than a measured crystal model.
Can I use this map on corrugated or folded galvanized sheet?
Yes, apply the surface material to a mesh that already has the folds, corrugations and exposed edges. The three 1K maps change shading only and do not create sheet profiles or silhouette thickness. Match the UV scale across panels and inspect the repeat before covering a large roof or duct.
